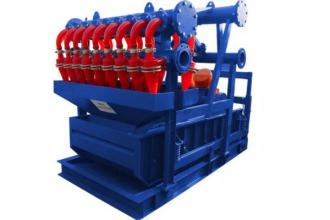

Mud cleaner is combined with Desander/Desilter hydrocyclone and bottom shaker
Description:Mud cleaner is combined with Desander/Desilter hydrocyclone and bottom shaker
Detailed Description of Mud Cleaner
1.Compact footprint and light
2.User-friendly
3.Easy to installation
4.Low cost on operation and maintenance
5.Low noise
Benefits of Mud Cleaner
Compact footprint and light
User-friendly
Easy to installation and transporation
Low cost on operation and maintenance.
Low noise
Decrease drilling cost
Controlling well on drilling mud leakage
Flexibility on treating capacity
Technical parameters
|
Model |
AJQ703 |
AJQ603 |
AJQ703B |
AJQ603B |
|
Treating capacity |
120~270m3/h |
120~240m3/h |
60~160m3/h |
60~160m3/h |
|
Hydrocyclones |
4" (8~20EA) |
4" (10~16EA) |
4"(4~12EA) |
4"(4~10EA) |
|
10"(1~3EA) |
10"(1~2EA) |
8"(1~2EA) |
8"(1~2EA) |
|
|
Feed inlet |
150mm |
150mm |
150mm |
150mm |
|
Discharge output |
200mm |
200mm |
200mm |
200mm |
|
Feeding pump power |
45~75KW |
45~55KW |
37~45KW |
37~45KW |
|
Bottom shaker |
AJS703L |
AJS603L |
AJS703L |
AJS603L |
|
Vibration mode |
Linear motion |
|||
|
Vibration motor |
2×1.5KW |
2×1.5KW |
2×1.5KW |
2×1.5KW |
|
Screen area |
2.2m2 |
2.05m2 |
2.2m2 |
2.05m2 |
|
Screen panel |
3 |
3 |
3 |
3 |
